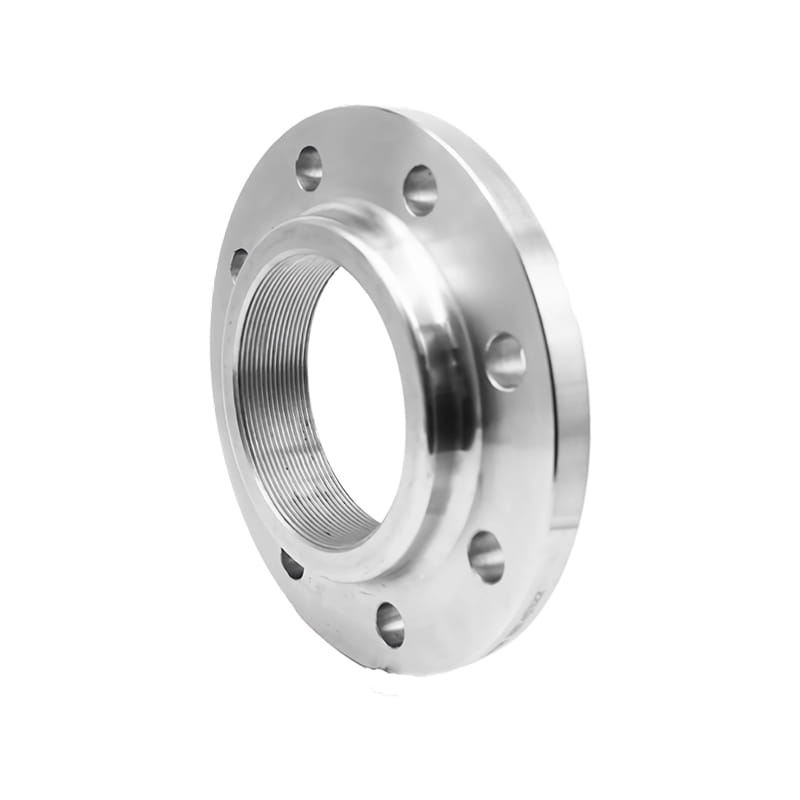

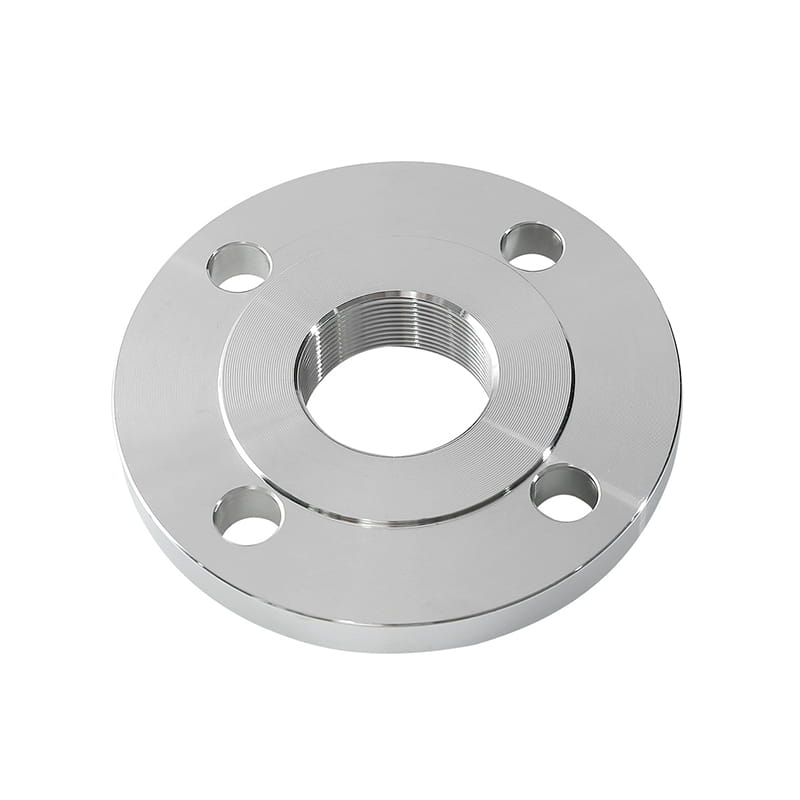

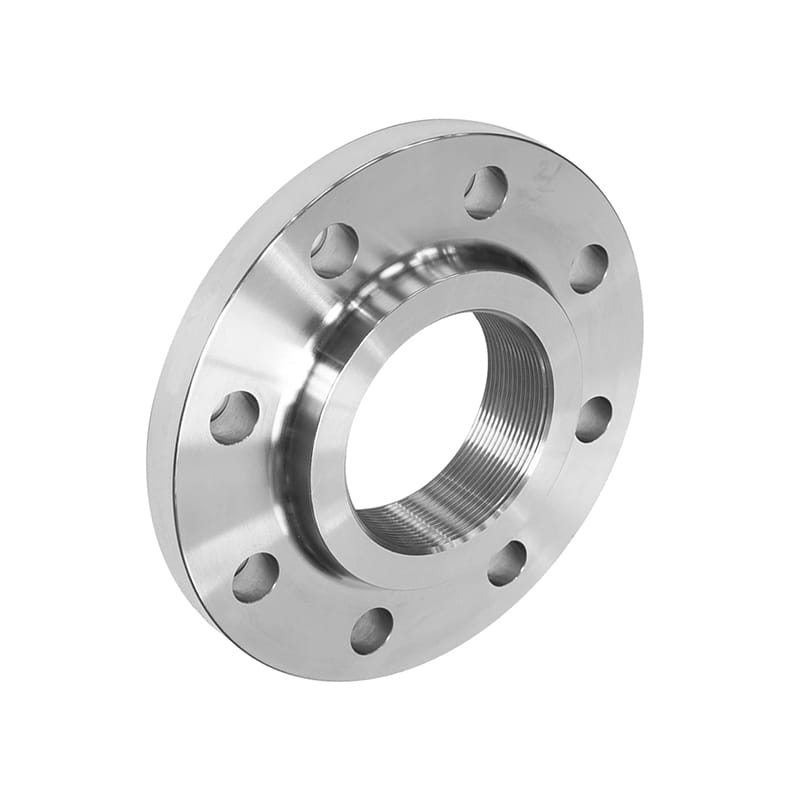

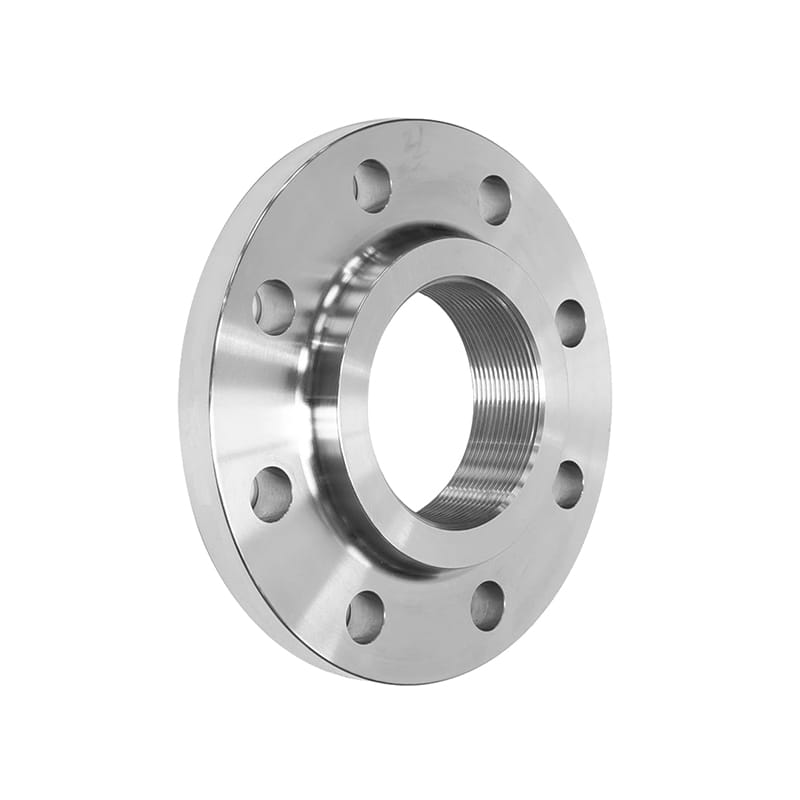

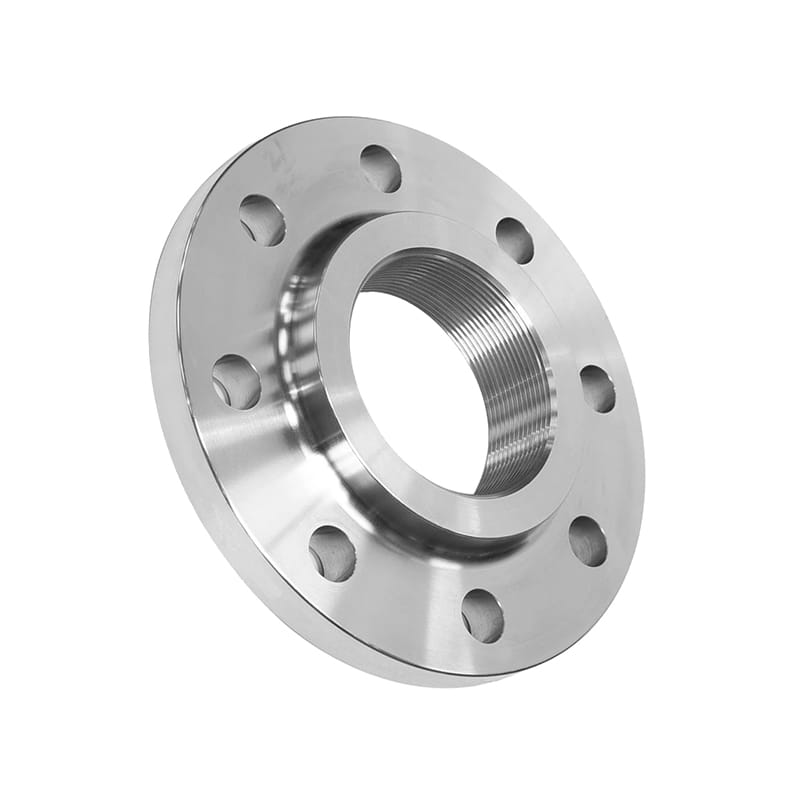

저압 시스템에 사용되는 스테인레스 스틸 스레드 플랜지

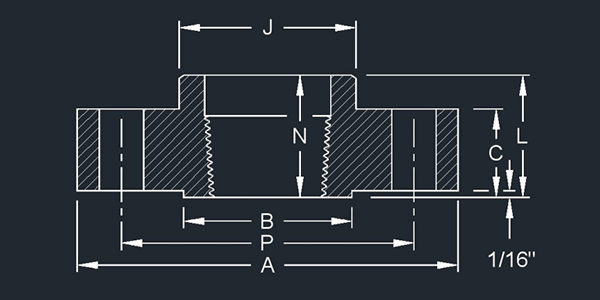

파이프 크기

(NPS)

에이

비

기음

J.

엘

N

볼트 구멍의 수

볼트 구멍의 직경

볼트 원선 직경

대략 무게

(LB)

½

3 1/2

1 3/8

7/16

1 3/16

5/8

5/8

4

5/8

2 3/8

2

¾

3 7/8

1 11/16

1/2

1 1/2

5/8

5/8

4

5/8

2 3/4

2

1

4 1/4

2

9/16

1 15/16

11/16

11/16

4

5/8

31/8

2

1¼

4 5/8

2 1/2

5/8

2 5/16

13/16

13/16

4

5/8

3 1/2

2

1½

5

2 7/8

11/16

2 9/16

7/8

7/8

4

5/8

3 7/8

3

2

6

3 5/8

3/4

3 7/16

1

1

4

3/4

4 3/4

5

2½

7

4 1/8

7/8

3 9/16

1 1/8

1 1/8

4

3/4

5 1/2

7

3

7 1/2

5

15/16

4 1/4

1 3/16

1 3/16

4

3/4

6

8

3½

8 1/2

5 1/2

15/16

4 13/16

1 1/4

1 1/4

8

3/4

7

11

4

9

6 3/16

15/16

5 5/16

1 5/16

1 5/16

8

3/4

7 1/2

13

5

10

7 5/16

15/16

6 7/16

1 7/16

1 7/16

8

7/8

8 1/2

15

6

11

8 1/2

1

7 9/16

1 9/16

1 9/16

8

7/8

9 1/2

19

8

13 1/2

10 5/8

1 1/8

9 11/16

1 3/4

1 3/4

8

7/8

11 3/4

30

10

16

12 3/4

1 3/16

12

1 15/16

1 15/16

12

1

14 1/4

43

12

19

15

1 1/4

14 3/8

2 3/16

2 3/16

12

1

17

64

14

21

16 1/4

1 3/8

15 3/4

2 1/4

2 1/4

12

1 1/8

18 3/4

85

16

23 1/2

18 1/2

1 7/16

18

2 1/2

2 1/2

16

1 1/8

21 1/4

93

18

25

21

1 9/16

19 7/8

2 11/16

2 11/16

16

1 1/4

22 3/4

120

20

27 1/2

23

1 11/16

22

2 7/8

2 7/8

20

1 1/4

25

155

22

29 1/2

25 1/4

1 13/16

243 1/8

3 1/8

3 1/8

20

1 3/8

27 1/4

159

24

32

27 1/4

1 7/8

26 1/8

3 1/4

3 1/4

20

1 3/8

29 1/2

210
