두꺼운 벽 용접 가능한 304 스테인레스 스틸 튜브 동심원 감속기 피팅

동심원 감속기

목

스테인레스 스틸 튜브 동심원 감소기

기준

ASME/ANSI B16.9, MSS SP-43, DIN 2605, JIS B2313

재료

304/304L, 316/316L 등

표면

모래 폭파, 산세, 모래 롤링 등

유형

CNC 마감 과정

크기

3/4-18”

배달 시간

선불을받은 후 5-30 일 이내에

포장

합판 케이스 또는 팔레트 또는 고객의 요구 사항에 따라

애플리케이션

석유, 화학, 전력, 가스, 야금, 조선, 건축 등

공칭 직경

외부 직경

길이

공칭 직경

외부 직경

길이

안에

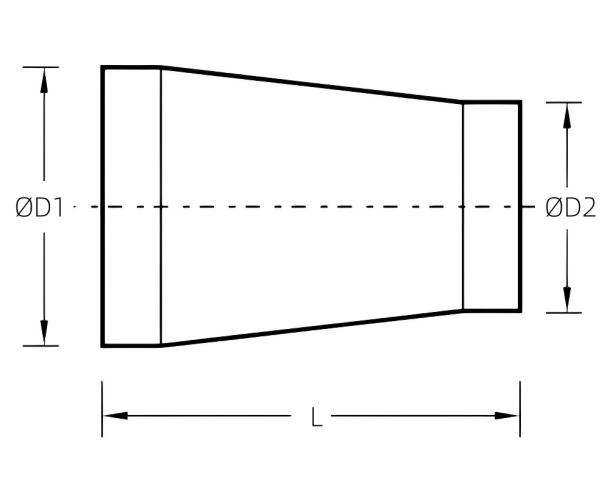

D1 × D2

엘

안에

D1 × D2

엘

3/4 × 1/2

26.7 × 21.3

38.1

18 × 10

457.2 × 273.1

381.0

3/4 × 3/8

26.7 × 17.1

20 × 18

508.0 × 457.2

508.0

1 × 3/4

33.4 × 26.7

50.8

20 × 16

508.0 × 406.4

1 × 1/2

33.4 × 21.3

20 × 14

508.0 × 355.6

1 1/4 × 1

42.2 × 33.4

50.8

20 × 12

508.0 × 323.9

1 1/4 × 3/4

42.2 × 26.7

22 × 20

558.8 × 508.0

508.0

1 1/4 × 1/2

42.2 × 21.3

22 × 18

558.8 × 457.2

1 1/2 × 1 1/4

48.3 × 42.2

63.5

22 × 16

558.8 × 406.4

1 1/2 × 1

48.3 × 33.4

22 × 14

558.8 × 355.6

1 1/2 × 3/4

48.3 × 26.7

24 × 22

609.6 × 558.8

508.0

1 1/2 × 1/2

48.3 × 21.3

24 × 20

609.6 × 508.0

2 × 1 1/2

60.3 × 48.3

76.2

24 × 18

609.6 × 457.2

2 × 1 1/4

60.3 × 42.2

24 × 16

609.6 × 406.4

2 × 1

60.3 × 33.4

26 × 24

660.4 × 609.6

609.6

2 × 3/4

60.3 × 26.7

26 × 22

660.4 × 508.0

2 1/2 × 2

73.0 × 60.3

88.9

26 × 20

660.4 × 457.2

2 1/2 × 1 1/2

73.0 × 48.3

26 × 18

660.4 × 406.4

2 1/2 × 1 1/4

73.0 × 42.2

28 × 24

711.2 × 660.4

609.6

2 1/2 × 1

73.0 × 33.4

28 × 22

711.2 × 609.6

3 × 2 1/2

88.9 × 73.0

88.9

28 × 20

711.2 × 508.8

3 × 2

88.9 × 60.3

28 × 18

711.2 × 457.2

3 × 1 1/2

88.9 × 48.3

30 × 28

762.0 × 711.2

609.6

3 × 1 1/2

88.9 × 48.3

30 × 26

762.0 × 660.4

3 × 1 1/4

88.9 × 42.2

30 × 24

762.0 × 609.6

3 1/3 × 3

101.6 × 88.9

101.6

30 × 20

762.0 × 508.0

3 1/2 × 2 1/2

101.6 × 73.0

32 × 30

812.8 × 762.0

609.6

3 1/2 × 2

101.6 × 60.3

32 × 28

812.8 × 711.2

3 1/2 × 1 1/2

101.6 × 48.3

32 × 26

812.8 × 660.4

3 1/2 × 1 1/4

101.6 × 42.2

32 × 24

812.8 × 609.6

4 × 3 1/2

114.3 × 101.6

101.6

34 × 32

863.6 × 812.8

609.6

4 × 3

114.3 × 88.9

34 × 30

863.6 × 762.0

4 × 2 1/2

114.3 × 73.0

34 × 26

863.6 × 660.4

4 × 2

114.3 × 60.3

34 × 24

863.6 × 609.6

4 × 1 1/2

114.3 × 48.3

36 × 34

914.4 × 863.6

609.6

5 × 4

141.3 × 114.3

127.0

36 × 32

914.4 × 812.8

5 × 3 1/2

141.3 × 101.6

36 × 30

914.4 × 762.0

5 × 3

141.3 × 88.9

36 × 26

914.4 × 660.4

5 × 2 1/2

141.3 × 73.0

36 × 24

914.4 × 609.6

5 × 2

141.3 × 60.3

38 × 36

965.2 × 914.4

609.6

6 × 5

168.3 × 141.3

139.7

38 × 34

965.2 × 863.6

6 × 4

168.3 × 114.3

38 × 32

965.2 × 812.8

6 × 3 1/2

168.3 × 101.6

38 × 30

965.2 × 762.0

6 × 3

168.3 × 88.9

38 × 28

965.2 × 711.2

6 × 2 1/2

168.3 × 73.0

38 × 26

965.2 × 660.4

8 × 6

219.1 × 168.3

152.4

40 × 38

1016.0 × 965.2

609.6

8 × 5

219.1 × 141.3

40 × 36

1016.0 × 914.4

8 × 4

219.1 × 114.3

40 × 34

1016.0 × 863.8

8 × 3 1/2

219.1 × 101.6

40 × 32

1016.0 × 812.8

10 × 8

273.1 × 219.1

177.8

40 × 30

1016.0 × 762.0

10 × 6

273.1 × 168.3

42 × 40

1066.8 × 1016.0

609.6

10 × 5

273.1 × 141.3

42 × 38

1066.8 × 965.2

10 × 4

273.1 × 114.3

42 × 36

1066.8 × 914.4

12 × 10

323.9 × 273.1

203.2

42 × 34

1066.8 × 863.6

12 × 8

323.9 × 219.1

42 × 32

1066.8 × 812.8

12 × 6

323.9 × 168.3

42 × 30

1066.8 × 762.0

12 × 5

323.9 × 141.3

44 × 42

1117.6 × 1066.8

609.6

14 × 12

355.6 × 323.9

330.2

44 × 40

1117.6 × 1016.0

14 × 10

355.6 × 273.1

44 × 38

1117.6 × 965.2

14 × 8

355.6 × 219.1

44 × 36

1117.6 × 914.4

14 × 6

355.6 × 168.3

46 × 44

1168.4 × 1117.6

711.2

16 × 14

406.4 × 355.6

355.6

46 × 42

1168.4 × 1064.8

16 × 12

406.4 × 323.9

46 × 40

1168.4 × 1016.0

16 × 10

406.4 × 273.1

46 × 36

1168.4 × 965.2

16 × 8

406.4 × 219.1

48 × 46

1219.2 × 1168.4

711.2

18 × 16

457.2 × 406.4

381.0

48 × 44

1219.2 × 1117.6

18 × 14

457.2 × 355.6

48 × 42

1219.2 × 1066.8

18 × 12

457.2 × 323.9

48 × 40

1219.2 × 1016.0
